How Does Laser Drilling Work in Positive Control?

In pharmaceutical Container Closure Integrity Testing (CCIT), positive controls are essential for verifying whether a leak test method can detect known defects. Among different types of CCIT Positive Control Samples, Laser Drilling Positive Control is widely used because it can create precise, repeatable, and measurable micro-defects in pharmaceutical packaging.

Laser drilling provides a controlled way to introduce micro-holes into containers such as vials, ampoules, prefilled syringes, cartridges, BFS containers, IV bags, and drug bottles. These samples are then used as Positive Controls for Leak Test during method development, validation studies, and routine system suitability testing.

What Is Laser Drilling Positive Control?

A Laser Drilling Positive Control is a package sample with a known micro-hole created by high-precision laser processing. The hole acts as an intentional leakage defect, allowing the test method to challenge the leak detection system under controlled conditions.

Unlike random or naturally occurring defects, laser-drilled defects can be produced with defined pore sizes, selected locations, and repeatable geometry. This makes Laser Drilled Positive Controls suitable for pharmaceutical CCIT studies where accuracy, traceability, and documentation are important.

How Does Laser Drilling Work?

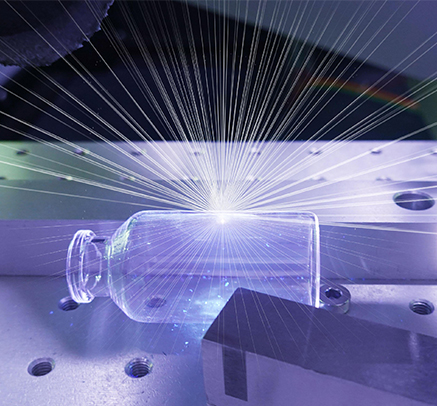

Laser drilling uses a focused laser beam to remove a very small amount of material from the package surface. The laser energy is concentrated on a specific point, creating a micro-sized opening through the container wall or selected package component.

The process usually involves several key steps:

1. Package evaluation
   The container type, material, wall thickness, and target drilling position are evaluated before processing.

2. Defect size selection
   The required pore size is selected according to the CCIT method, target leak level, and validation purpose.

3. Precision laser drilling
   A focused laser beam is applied to the selected position to create a controlled micro-hole.

4. Defect verification
   The drilled hole is inspected and verified to confirm that the defect size and position meet the required specification.

5. Documentation and calibration support
   Traceable calibration certificates can be supplied to support validation records, audits, and quality documentation.

Through this controlled process, Laser Drilling Positive Control samples can provide a reliable reference standard for pharmaceutical package integrity testing.

Why Use Laser Drilling for Positive Controls?

Laser drilling is commonly used for Positive Control Samples because it offers high precision and repeatability. For CCIT method validation, the defect must be known, intentional, and suitable for challenging the selected leak test method.

Key benefits include:

• Precise micro-defect creation
  Laser drilling can create controlled micro-holes with specified pore sizes.

• Repeatable positive control performance
  Samples can be produced with consistent defect characteristics for comparison and validation.

• Suitable for multiple package formats
  Laser drilling can be applied to vials, ampoules, prefilled syringes, cartridges, BFS containers, IV bags, and other pharmaceutical packages.

• Useful for method development and validation
  These Positive Controls for CCIT help determine whether the method can detect the required defect level.

• Support for USP <1207> compliance
  Laser-drilled positive controls help build documentation for deterministic container closure integrity testing.

• Traceable calibration certificates available
  Documentation can support quality records, method validation, and regulatory audits.

How Laser Drilled Positive Controls Support CCIT

In CCIT studies, a leak test method must prove that it can distinguish between intact packages and defective packages. Laser Drilled Positive Controls provide the known defective samples needed for this comparison.

They are commonly used for:

• Leak test method development

• Method validation studies

• Limit of detection evaluation

• Equipment qualification

• Routine system suitability testing

• Operator training

• Regulatory audit support

• Package integrity troubleshooting

For example, if a vacuum decay leak detector is being validated for vial testing, laser-drilled vials with known micro-holes can be tested alongside negative control samples. If the equipment can consistently identify the laser-drilled samples as defective and the intact samples as acceptable, the method gains stronger validation support.

Laser Drilling Positive Control vs. Other Positive Controls

Different Positive Controls for Leak Test are used for different purposes. Laser drilling is especially suitable when a defined micro-hole is required directly on the package material.

Compared with Micropipette Positive Control, laser drilling creates a micro-hole on the package itself, while micropipette samples use a precision-bored glass tube to simulate a leak path.

Compared with Capillary Positive Control, laser drilling is often used for direct defect simulation, while capillary samples are more suitable for stable micro-leak channels and high-sensitivity leak standards.

Compared with Natural Defects Positive Control, laser drilling provides more controlled and repeatable defects, while natural defects are useful for studying real-world packaging failure risks.

Choosing the Right Laser Drilling Positive Control

When selecting Laser Drilling Positive Control samples, pharmaceutical manufacturers should consider:

• Container type

• Packaging material

• Wall thickness

• Target pore size

• Hole location

• Test method sensitivity

• Product fill condition

• Validation objective

• Routine testing requirements

The right CCIT Positive Control Samples should match the negative control samples as closely as possible in construction materials, package assembly, and component processing. This ensures that test differences are caused by the intentional defect rather than unrelated package variations.

Zholion Laser Drilling Positive Control Samples

Zholion provides standard and customized Laser Drilling Positive Control samples for pharmaceutical and medical device package integrity testing. Our Positive Controls for Leak Test are designed to support CCIT method development, validation, system suitability testing, and routine quality verification.

Available options include different container types, pore sizes, drilling positions, and quantity ranges. Traceable calibration certificates can be supplied to support validation documentation and regulatory requirements.

Whether you are testing vials, ampoules, prefilled syringes, cartridges, IV bags, BFS containers, or drug bottles, Zholion can help you select suitable Laser Drilled Positive Controls for your CCIT project.

Conclusion

Laser drilling works by creating a controlled micro-hole in pharmaceutical packaging, turning the package into a known defective sample for CCIT studies. Because the defect is intentional, measurable, and repeatable, Laser Drilling Positive Control is an important tool for leak test method development, validation, and routine verification.

By using qualified CCIT Positive Control Samples, pharmaceutical manufacturers can improve leak test reliability, support USP <1207> compliance, and build stronger confidence in container closure integrity decisions.

Contact Zholion to discuss your container type, target pore size, test method, and validation requirements. Our team can help recommend suitable Laser Drilling Positive Control samples for your pharmaceutical package integrity testing project.
