Dye Ingress
Nov. 11, 2026
Test Principle

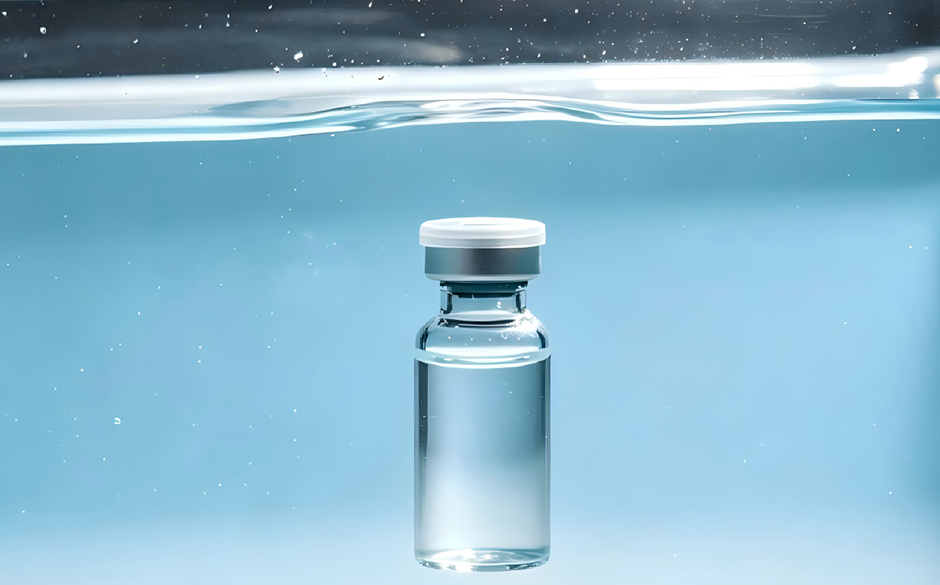

Dye ingress testing is a probabilistic, destructive container closure integrity test method. The sealed container is submerged in a dye solution (typically methylene blue or toluidine blue) within a vacuum chamber. A vacuum is applied to create a pressure differential across the container wall, driving the dye solution into any leak pathways. After the vacuum is released, the container is visually inspected for dye penetration. If dye is present inside the container, the package is considered non-integral. The method typically detects leaks down to approximately 20 μm in diameter.

Applications of Dye Ingress Testing
Dye ingress testing can be used in different pharmaceutical packaging development and quality evaluation activities.
Pharmaceutical Vial Leak Testing
Dye ingress testing can help evaluate the sealing performance of glass vials and their closure systems, including the interface between the vial, stopper and sealing components.
Ampoule Seal Integrity Testing
The method can be applied to sealed ampoules to investigate possible leakage pathways and evaluate sealing performance during packaging development.
Prefilled Syringe Integrity Evaluation
For prefilled syringes, dye ingress testing may be used to assess relevant closure interfaces and package sealing performance, subject to package-specific method development.
IV Bags and Flexible Pharmaceutical Packaging
Dye ingress can support the evaluation of seals and closure interfaces in flexible pharmaceutical packaging, including selected infusion bags and other liquid containers.
Packaging Development and Method Validation
Dye ingress testing can be used during packaging development, comparative seal evaluation and selected container closure integrity validation studies.
Dye Ingress Test Equipment
Zholion provides two dye ingress testing systems for pharmaceutical container closure integrity evaluation.
MC-B82 Negative Pressure Leak Detector
Supports dye ingress, bubble emission and microbial ingress testing. Features a transparent chamber and five chamber size options for different pharmaceutical packaging formats.
MC-D73 Positive & Negative Pressure Leak Detector
Supports both positive and negative pressure testing with automatic pressure switching. Features a 20L test chamber and customizable sample racks for different pharmaceutical containers.
Regulatory Requirements
USP<1207>
USP <1207> classifies dye ingress as a probabilistic leak test method, which is defined as having random characteristics where results depend on a series of events, each associated with random outcomes described by probability distributions. As a result, probabilistic methods require large sample sizes and rigorous test condition control to obtain meaningful results.
USP <1207> recommends a transition from probabilistic to deterministic CCIT methods for product release testing. Deterministic methods (vacuum decay, helium mass spectrometry, laser-based headspace analysis) are preferred for routine quality control due to their quantitative, objective, and sample-size-efficient characteristics. Dye ingress is limited by its qualitative (pass/fail) output, destructive nature, susceptibility to drug product interference, and lower sensitivity compared to deterministic methods. Nevertheless, the method remains recognised as a traditional probabilistic technique for container closure integrity assessment.
EU GMP Annex 1
Container closure integrity validation is mandatory for all sterile products (Clause 8.24). While deterministic methods are preferred, probabilistic methods such as dye ingress may have utility in specific development and validation studies. The classification between deterministic and probabilistic methods aligns with USP <1207> definitions.
Sterile Pharmaceutical Packaging System Integrity Guideline Principles (China)
The Chinese Pharmacopoeia Commission released the "9650 Sterile Pharmaceutical Packaging System Integrity Guideline Principle" (first draft) and "9628 Sterile Pharmaceutical Packaging System Integrity Guideline Principle" (second draft) in 2024. These guidelines define probabilistic leak test methods as those having random characteristics, where results depend on a series of events each associated with random outcomes described by probability distributions, requiring large sample sizes and rigorous test condition control.
Dye ingress is classified as a probabilistic method under the NMPA framework. The guidelines state that product quality risk and MALL-based method selection should guide the choice between deterministic and probabilistic techniques. The guidelines also list tracer liquid testing – a category encompassing dye ingress – as a recognised probabilistic method, with a leak detection limit of 3.6×10⁻³ < gas leakage rate ≤ 1.4×10⁻² std·cm³/s (5.0 μm < leak diameter ≤ 10.0 μm).
Frequently Asked Questions About Dye Leak Testing
1. What Is a Dye Leak Test?
A dye leak test is a probabilistic container closure integrity testing method that uses a colored solution to identify leakage pathways in sealed pharmaceutical packaging. Dye penetration into the container indicates a potential package integrity failure.
2. What Is the Difference Between Dye Ingress and Dye Penetration Testing?
Dye ingress testing and dye penetration testing generally refer to the same testing principle. Both evaluate whether a colored liquid can enter a sealed package through an existing leakage pathway.
3. Which Dyes Are Commonly Used for Dye Ingress Testing?
Methylene blue and toluidine blue are commonly used dye solutions. The specific dye, concentration and test conditions should follow the applicable testing procedure.
4. Is Dye Ingress Testing Destructive?
Yes. Dye ingress testing is generally destructive because the sample is immersed in a test solution and exposed to test conditions. Tested samples should not be returned to normal pharmaceutical use.
5. What Is the Difference Between Dye Ingress and Vacuum Decay Testing?
Dye ingress is a probabilistic visual method that identifies leakage through dye penetration. Vacuum decay is a deterministic method that monitors pressure changes inside a sealed test chamber to detect leakage.
Vacuum decay can provide quantitative results without destroying the tested package, provided the package and test configuration are suitable.
6. Can Dye Ingress Testing Be Used for Pharmaceutical Vials?
Yes. Dye ingress can be used to evaluate selected vial closure systems, including the sealing interface between the vial, stopper and other closure components.
7. Which Zholion Equipment Supports Dye Ingress Testing?
Zholion provides two relevant models:
-
MC-B82 Negative Pressure Leak Detector Series
-
MC-D73 Positive & Negative Pressure Leak Detector
The MC-B82 supports dye ingress, bubble emission and microbial ingress. The MC-D73 supports dye ingress and microbial ingress with positive and negative pressure configurations.
8. What Is the Difference Between MC-B82 and MC-D73?
The MC-B82 is a negative-pressure multi-method system with multiple chamber size options. The MC-D73 provides automatic switching between positive and negative pressure and a standard 20-liter chamber with customizable racks.
9. Is Dye Ingress Testing Suitable for Routine Pharmaceutical Product Release?
Dye ingress is a probabilistic method and provides qualitative results. Deterministic methods are generally preferred for routine quality control and product release when technically suitable. Method selection should follow risk assessment, applicable regulations and validation requirements.
10. How Do I Choose a Suitable Dye Ingress Testing System?
Consider your container type, dimensions, material, product state, required pressure conditions, test methods and validation requirements. Zholion can help evaluate these factors and recommend a suitable MC-B82 or MC-D73 configuration.
Need a Reliable Dye Ingress Testing Solution?
Looking for a suitable dye leak test system for pharmaceutical packaging?
Zholion offers the MC-B82 and MC-D73 dye ingress testing systems for different container types and testing requirements. Contact our team to discuss your sample specifications, pressure requirements and equipment configuration.
Contact Zholion today to find the right dye ingress testing solution for your laboratory.
